Synthesizable ≠ Efficient FPGA Implementation

Just like I discussed synthesis in the previous blog, simply having a synthesizable RTL does not mean that the design will work efficiently on an FPGA.

To get an RTL design implemented on an FPGA, synthesis is a very important step. A lot of students or newcomers who use FPGAs for the first time assume that once the code synthesizes successfully, it is automatically efficient on hardware.

That is not true, and that is exactly what this blog is about.

1. Importance of the statement Synthesizable ≠ Efficient FPGA Implementation

No matter which FPGA you use, synthesis will always be an essential step. The reason is simple. If your code is not synthesizable, it cannot be broken down into basic hardware blocks such as flip-flops, combinational logic, and memory elements. If the hardware cannot be inferred, it cannot be mapped onto the FPGA fabric.

An FPGA is a Field Programmable Gate Array made up of configurable logic elements. These logic elements can only implement what the synthesis tool is able to infer from the RTL. If the RTL is not synthesizable, the FPGA simply cannot be programmed with it.

However, synthesis alone is not enough. There are several other factors that decide whether the design will be efficient on FPGA hardware. Some of the important ones are: - Proper use of SRAM that can map to BRAM - Keeping LUT usage under control - Using correct signal widths

These points become critical as the design grows in size and complexity.

2. Resource Exhaustion

Before getting into more complex implementation issues, the easiest one to understand is resource exhaustion.

FPGAs are arrays of logic units called LUTs (Look-Up Tables) that can be programmed and reprogrammed. These LUTs are limited in number. Unlike ASICs, where the logic is custom built for a specific application, FPGA logic is general purpose. This flexibility comes at the cost of limited resources.

ASICs can have far more optimized logic for a specific task, but they are also very risky. Any RTL bug that slips through verification and makes it to fabrication can render the entire chip unusable. That is why FPGA prototyping is such an important step before ASIC manufacturing.

When implementing designs on FPGA, you must always be aware of how many LUTs, flip-flops, and memory resources are being used. Poor RTL decisions can easily waste resources and prevent the design from fitting on the device.

3. SRAM and BRAM

What is BRAM

BRAM stands for Block RAM. These are prebuilt memory blocks available inside the FPGA fabric. They are far more efficient than implementing memory using LUTs.

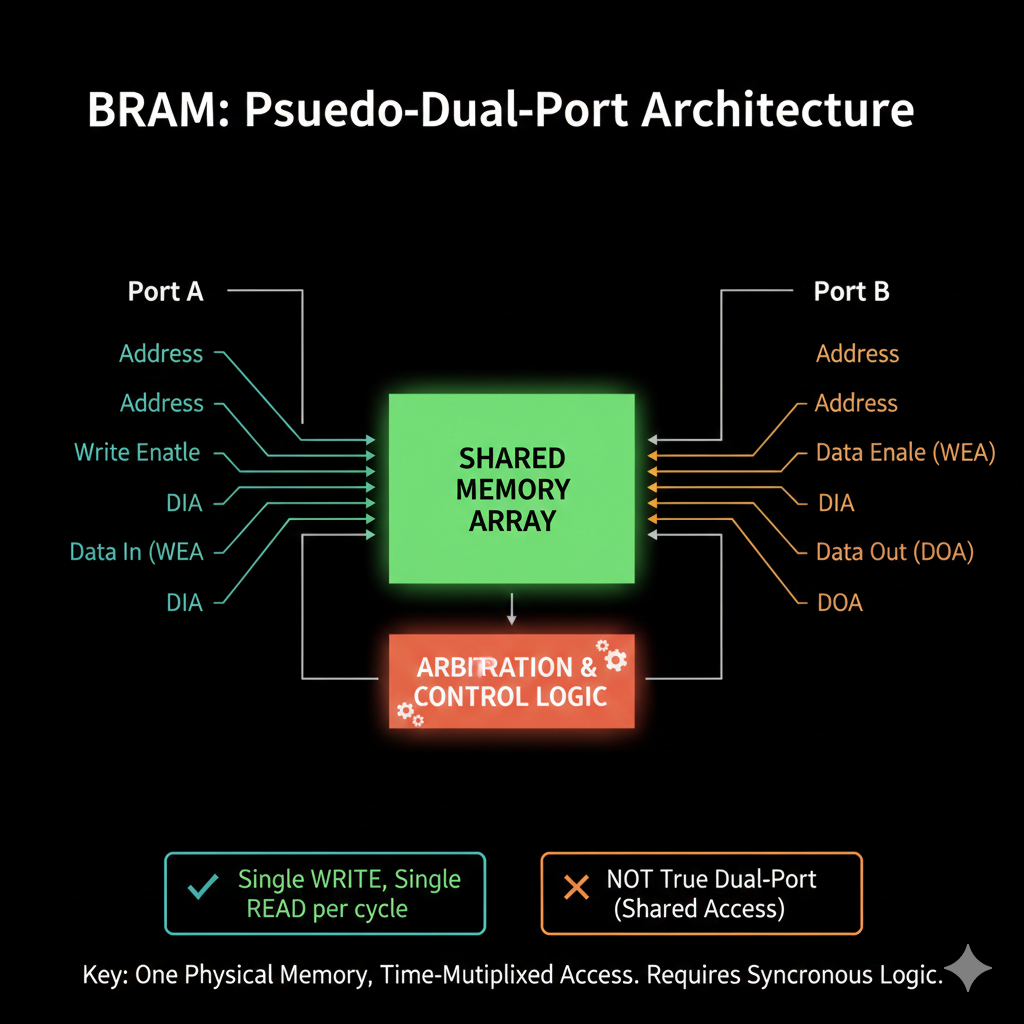

At the hardware level, BRAMs are not implemented as fully independent multi-ported SRAMs like those used in high-end ASIC designs. Instead, BRAMs are implemented using shared memory arrays with internal sequencing and arbitration. In practical terms, this means BRAM behaves like what is commonly referred to as pseudo dual-port SRAM.

Even though BRAM exposes two ports, the most commonly used configuration is one write port and one read port. These ports are not physically independent in silicon. They share the same underlying memory array and operate under strict timing rules.

True dual-port SRAM, where both ports can independently read and write at the same time using fully independent circuitry, is very expensive in terms of area and power. That is why FPGA BRAM does not use that approach internally.

If the RTL requires behavior that BRAM cannot support, the synthesis tool falls back to implementing memory using LUTs. LUT-based memory is essentially a large network of multiplexers, which works functionally but is inefficient in terms of area and routing.

Synchronous vs Asynchronous Read

BRAM supports only synchronous read. That means data is returned on a clock edge, not immediately when the address changes.

Example of synchronous read, which can infer BRAM:

always @(posedge clk) begin
    if (we)
        mem[addr] <= data_in;
    data_out <= mem[addr];
end

Example of asynchronous read, which cannot be mapped to BRAM:

assign data_out = mem[addr];

Asynchronous read forces the tool to use LUTs instead of BRAM because BRAM physically cannot support combinational address-to-data paths.

Reset Behavior and BRAM

Another common issue is reset behavior. BRAM cannot reset every memory location using a reset signal. If the RTL tries to reset the contents of memory, the tool cannot map it to BRAM and will instead use registers or LUTs.

Correct approach: Reset control logic and pointers, not memory contents.

Example of safe reset logic:

always @(posedge clk) begin
    if (!rst_n) begin
        rd_ptr <= 0;
        wr_ptr <= 0;
    end
end

Important: Never try to reset the actual memory array like this:

// ❌ BAD - This will NOT map to BRAM
always @(posedge clk) begin
    if (!rst_n) begin
        for (int i = 0; i < MEM_DEPTH; i++)
            mem[i] <= 0;  // Trying to reset all memory
    end
end

4. Why Synthesizable RTL Still Fails to Be Efficient

RTL can be fully synthesizable and still map very poorly to FPGA hardware if it assumes ASIC-style memory behavior. This includes assumptions like: - Asynchronous read - Arbitrary reset of memory - Fully independent memory ports

When these assumptions are violated, the synthesis tool has no choice but to use LUTs and registers instead of BRAM. This results in: - Higher resource usage - Worse timing - Inefficient designs

5. Not Using a Proper SDF File

Another critically overlooked issue is timing verification. Without proper post-synthesis or post-place-and-route timing analysis using an SDF (Standard Delay Format) file, designs that work in simulation may fail on real hardware.

What is an SDF File?

An SDF file is a standardized file format that contains detailed timing information about your design after it has been mapped to actual FPGA resources. It includes: - Propagation delays through LUTs and other logic elements - Interconnect delays between components - Setup and hold times for flip-flops - Clock-to-output delays

Why SDF Matters for FPGA

At the RTL simulation level, timing is idealized. Your testbench assumes: - Zero delay through combinational logic - Instantaneous signal propagation - Perfect setup/hold timing

In reality, FPGA timing behavior depends heavily on: - Routing delays - How far signals need to travel on the FPGA fabric - Placement - Where logic elements are physically located - Fanout - How many destinations a signal drives - Logic depth - Number of LUTs a signal passes through

These delays are invisible at the RTL simulation level.

The Problem: Simulation vs Reality

Consider this common scenario:

// RTL that works fine in simulation
always @(posedge clk) begin
    temp <= a & b;
    result <= temp | c;
end

In RTL simulation: - Both statements execute with zero delay - Timing appears perfect

On actual FPGA hardware: - AND operation has propagation delay through LUT - Routing delay from temp to OR gate - OR operation has its own LUT delay - If total delay exceeds clock period, timing violation occurs

Common Timing Issues Caught by SDF

1. Setup Time Violations: Data changes too close to clock edge
2. Hold Time Violations: Data changes too soon after clock edge

3. Clock-to-Output Delays: Output signal arrives late for next stage
4. Cross-Clock Domain Issues: Signals crossing between clock domains without proper synchronization

Best Practices

✓ Always run gate-level simulation with SDF for critical paths
✓ Check timing reports from place-and-route tools
✓ Add timing constraints to guide the tool
✓ Use proper clock domain crossing techniques

✗ Never rely solely on RTL simulation for timing validation
✗ Don’t ignore timing warnings from synthesis tools
✗ Avoid tight timing paths without margin

The Bottom Line

SDF-based timing simulation is the bridge between RTL and hardware reality. Without it, you’re flying blind your design might synthesize perfectly, use resources efficiently, and still fail catastrophically on actual hardware due to timing issues you never detected in simulation.

Closing Thoughts

I have implemented several of my designs on the TinyFPGA BX board, and I can confidently say that FPGA bring-up is a valuable skill. Understanding how RTL maps to actual hardware makes a massive difference in design quality.

The key takeaways from this blog are: - Synthesizable ≠ Efficient - Always verify resource usage - BRAM inference requires specific coding patterns - Synchronous reads, no arbitrary resets - Timing verification is critical - Use SDF files for realistic simulation - Resource awareness matters - Monitor LUTs, FFs, and memory utilization

If you are working with the TinyFPGA BX and want an up-to-date reference, I have created a handbook for it since most online resources are outdated.

Thank you, and I hope to see you in the next one!
